SPGDS1PM56 ASIC Device:



Custom ASIC developed to monitor performance of up to 56 DS1s 1344 Channels ( T1 ) 1.544 Mbps . Provides counts of frame and CRC errors as well as an efficient far end data link message buffer. Input can be 56 DS1s with data and clock for each or 2 DS3s 44.736 Mbps 672 Channels each DS3. (DS3s are internally de-muxed. PM (Performance Monitoring) for the DS3s are available as well). Packaged in a 208pin QFP.

Features:
  • DS1 performance monitor (LOS, LOF, AIS, SF/ESF, LCV count, frame error count, ESF CRC error count).

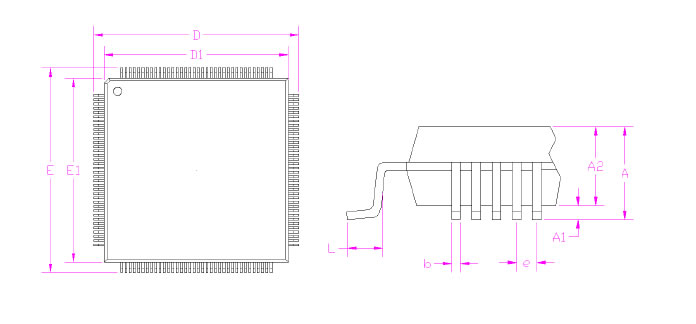

56ds1pm asic print

Click here for the pdf version

Leads

208 (52/Side)

208 (52/Side)

208 (52/Side)

A

4.10 Max

4.10 Max

3.70 Nom/ 4.07 Max

A1

0.25/0.50

0.25/0.50

0.25 Min/ 0.33 Nom

A2

3.49 +/-0.10

3.40 +/- 0.20

3.17/3.37/3.60

D/E

31.20 +/-0.20

30.95/31.20/31.45

31.20 BSC

D1/E1

28.00 +/-0.10

28.00 +/-0.10

28.00 BSC

e

0.50 BSC

0.50 BSC

0.50 BSC

b

0.22 +/-0.05

0.17/0.27

0.13/0.25

L

0.88 +0.15/-0.10

0.88 +/- 0.15

0.73/0.88/1.03



56DS1PM ASIC 208 PQFP
